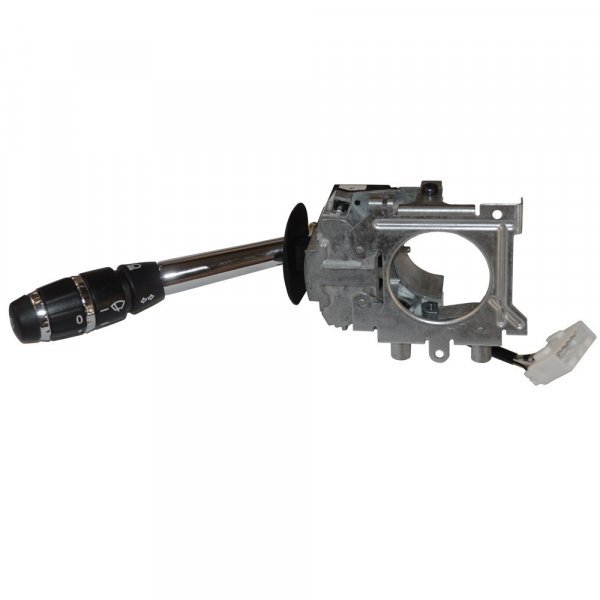

MULTI FUNCTION SWITCH (Indicator, headlamp dip & wipers) (PH102738PBSXR)

This is the main switch on the upper steering column that operates the indicators, the headlamp dip, the windscreen wiper speed and the windscreen and headlamp washers.It is very common for this switch to malfunction. It operates as follows:• End of stalk push switch - Screen/Headlamp wash.(When the wash button is pressed the washer pump runs and the wiper armswipe the screen. The wiper motor should continue to run for a further 4 wipe actions (+/- 1 wipe) after the wash button is released).• Right hand 4 position rotary switch - Intermittent wiper function delay times 4.6 secs, 7.6 secs, 15.1 secs and 19.1 secs (+/- 12%).• Left hand 4 position rotary switch - Wiper speed (off, intermittent , low speed 42 wipes per minute, high speed 61 wipes perminute).• Push stalk switch up - Direction indicator RH turn signal• Push stalk switch down - Direction indicator LH turn signal• Push stalk switch towards - Flash headlamps• Push stalk switch away - Main beam
