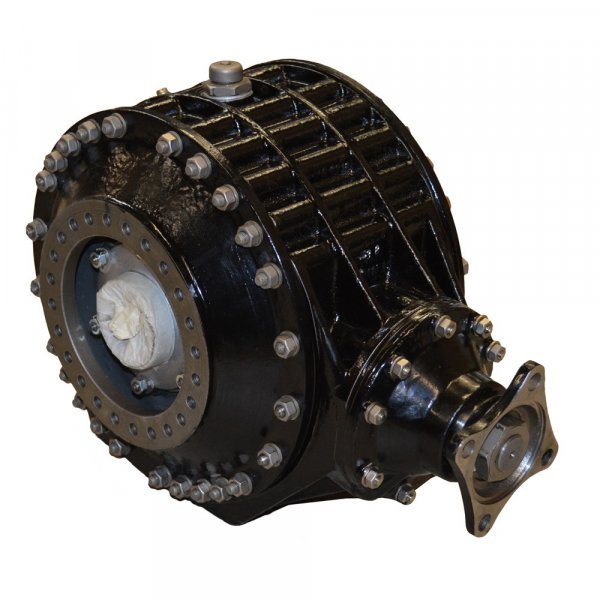

13:38 RATIO DIFFERENTIAL (Fully reconditioned) (AXLE5)

This is a fully reconditioned rear axle differential for the Silver Cloud II & III and Bentley S2 & S3 models. It has a gear ratio of 13/38 (2.92:1).PLEASE NOTE: This axle will only be guaranteed if the rear wheel bearings are replaced at the time of fitting. New bearings or exchange half shafts (containing new bearings) are available.The typical axle specification for one of our reconditioned axles is as follows:New crown wheel and pinion 13/38 (2.92:1), this ratio is the one normally used on the Bentley Continental S2 until August 1960, and is approx 5%+ higher geared than later cars, or the standard production cars, providing a more relaxed cruising speed.New pinion main bearings set to the upper tolerance of pre-load. Pinion nose bearing supplied and fitted in over-sized outer diameter when required.New main carrier bearings supplied and fitted in standard, over-sized outer tracks or under-sized inner tracks to keep clearances within factory tolerances as required.Overhaul and resetting of differential pinions and bevels using new thrust washers to reset centre gears to factory standards.New, resized H.D. pinion bearing housing providing more bearing support and freedom from gear noise.All new lock washers, woodruff drive keys in over-size if required, alloy sealing washers, and new leather side seals fitted throughout.Front seal housing and flange modified to accept a modern type oil seal and the finished axle oil tested by standing on the drive flange for 24 hours whilst full of oil.Front drive flange face and recess machined square, and seal face machined to accept modern oil seal.Three new Belleville main bearing disc springs fitted.Main casing through bolts nickel plated and new nuts and washers fitted.All parts thoroughly deep cleaned and glass blasted with water before inspection, individual parts nickel plated for storage protection as required. Finished axle painted in one coat black paint.Pinion penetration and backlash settings restored to makers settings.All axles are supplied with detailed rebuild sheet recording all setting and spacer features.Before supplying we request the chassis number for the vehicle the parts are being supplied for.We also ask for a description of fault with the vehicle.It comes with a 2 year (unlimited mileage) guarantee - unless your car has been modified or altered in any way (if this is the case please contact us prior to ordering).PLEASE NOTE: This axle will only be guaranteed if the rear wheel bearings are replaced at the time of fitting. New bearings or exchange half shafts (containing new bearings) are available.
